Aluminium Telescopic Levelling Staves |
 |
|
| |
| Telescopic levelling staffs are made of high quality white powder-coated aluminium tubes. The individual sections slide in sturdy plastic extension guides which allow for trouble-free insertion and withdrawal. The robust locking mechanism guarantees a safe locking of the individual telescopic sections. For cleaning, the entire telescopic levelling staff can be taken apart and reassembled without tools. Aluminium rods may adjust length by telescoping sections inside each other. |
| |
Special Features:- |
 |
International Standard, Automatically processed under strict quality control. |
|
Strong High Tensile extruded aluminium alloy / seasoned wood. |
|
Painted with water proof Powder Coated / Enamelled paints. |
|
Brightly coloured for high on site visibility. |
|
| |
4 Meters |
5 Meters |
6 Meters |

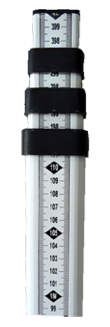

BACK SIDE |
| 4 Sections |
5 Sections |
6 Sections |
|
 |
 |
 |
 |

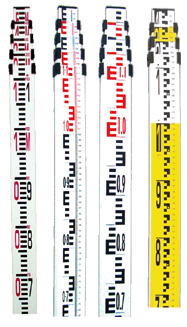

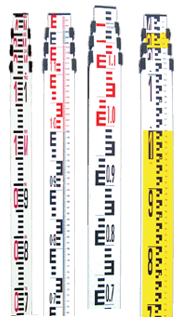

| AS-4-1 , AS-4-2 , AS-4-3 , AS-4-4 |
AS-5-1 , AS-5-2 , AS-5-3 , AS-5-4 |
AS-6-1 |
|
|
| |
Technical Data:- |
| Model |
Extended
Length
(Mtr.) |
Nos.
of Sec. |
Background
colour |
Graduations |
Width
of the
Sec.(mm) |
Thick.
of the
Sec. (mm) |
Closed
Length
(mm) |
Weight
(Approx)
(Kg.) |
Package
(Pcs. per
Carton) |
| Front |
Back |
Side |
| AS - 4-1 |
4 |
4 |
White |
5 mm |
1mm |
---- |
51 |
27 |
1215 |
1.650 |
10 |
| AS - 4-2 |
4 |
4 |
White |
5mm(E) |
---- |
1mm |
51 |
27 |
1215 |
1.650 |
10 |
| AS - 4-3 |
4 |
4 |
White |
5mm(E) |
1mm |
---- |
51 |
27 |
1215 |
1.650 |
10 |
| AS - 4-4 |
4 |
4 |
Yellow |
5mm |
1mm |
10mm |
51 |
27 |
1215 |
1.650 |
10 |
| AS - 5-1 |
5 |
5 |
White |
5mm |
1mm |
---- |
51 |
27 |
1245 |
1.900 |
10 |
| AS - 5-2 |
5 |
5 |
White |
5mm(E) |
----- |
1mm |
51 |
27 |
1245 |
1.900 |
10 |
| AS - 5-3 |
5 |
5 |
White |
5mm(E) |
1mm |
---- |
51 |
27 |
1245 |
1.900 |
10 |
| AS - 5-4 |
5 |
5 |
Yellow |
5mm |
1mm |
10mm |
51 |
27 |
1245 |
1.900 |
10 |
| AS - 6-1 |
6 |
6 |
White |
5mm |
1mm |
---- |
51 |
27 |
1445 |
2.300 |
6 |
|
| |
| |
| |
